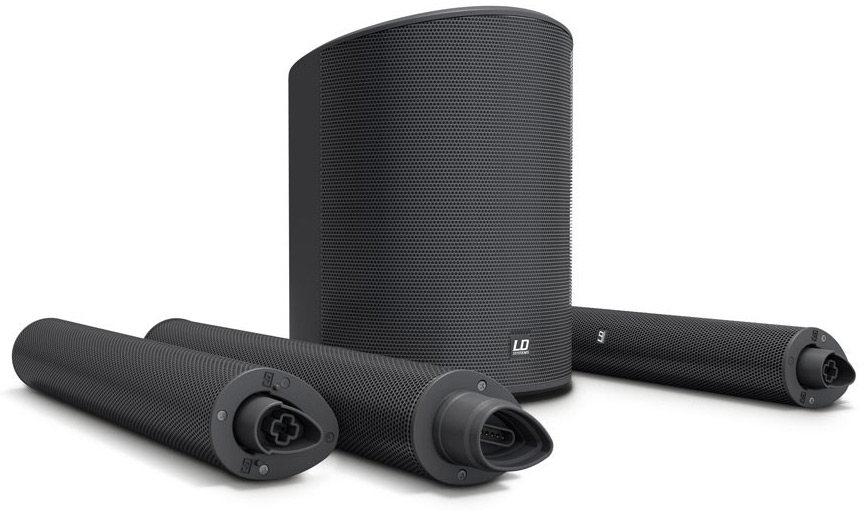

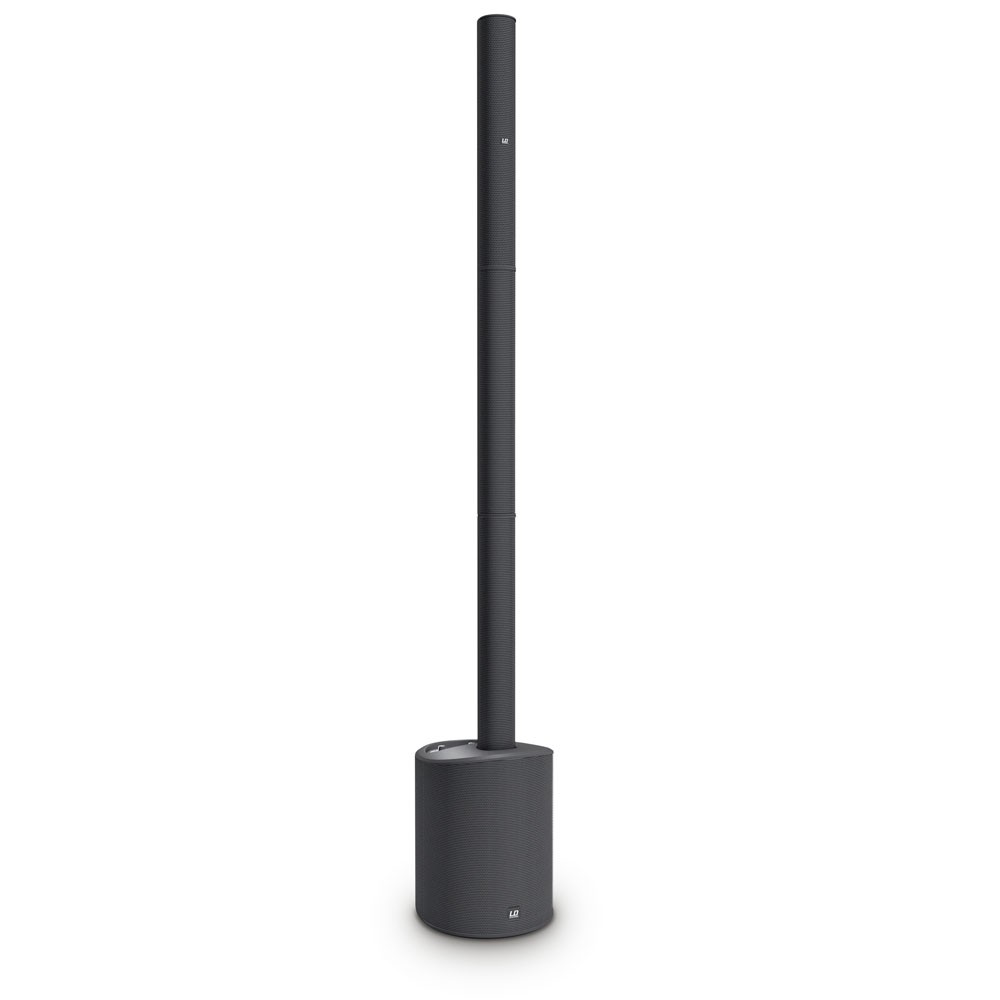

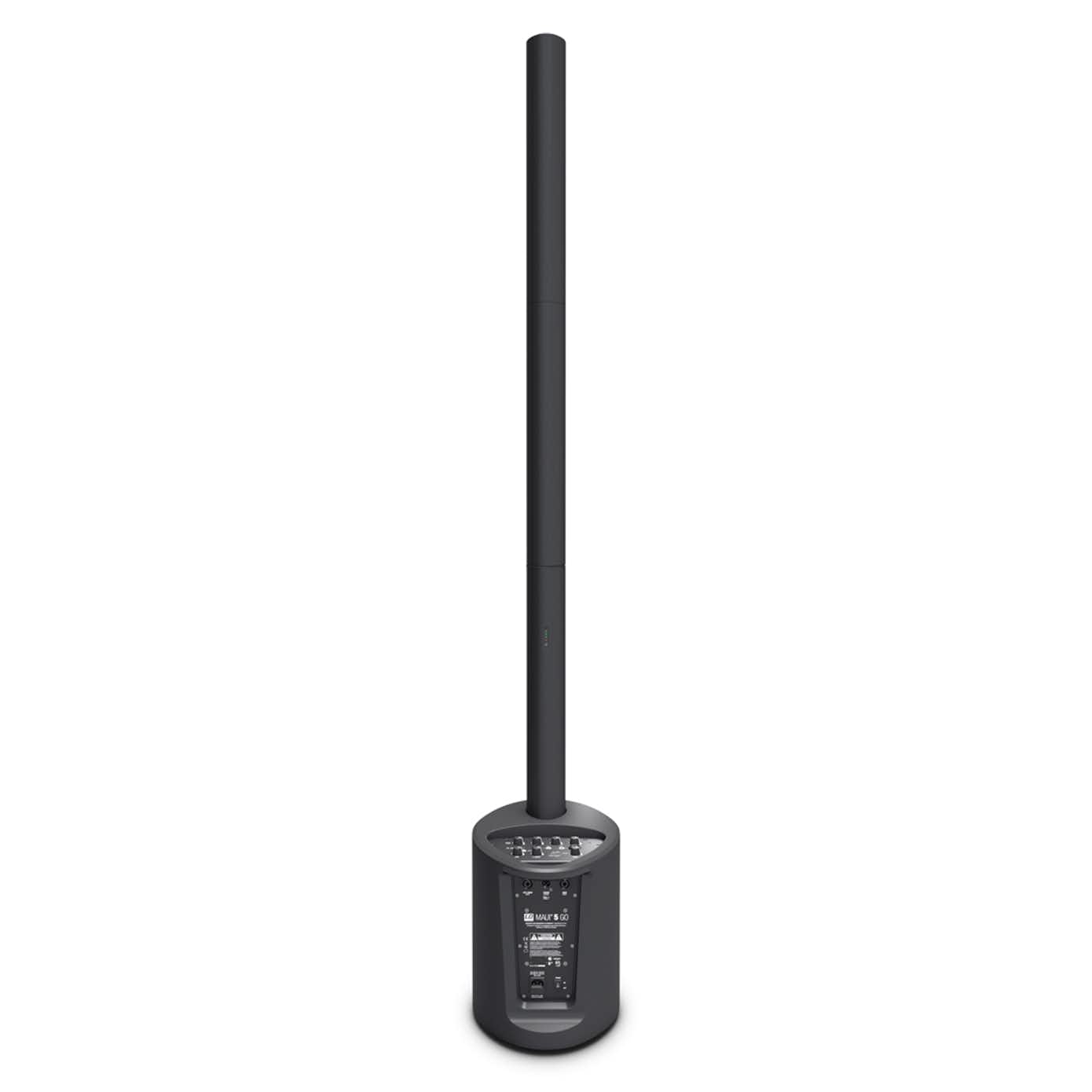

MAUI 5 GO
Ultra-portable battery-powered column PA system
Specifications
| Weight | 12,9 kg |
| Product type | PA Complete Systems |
| Type | active |
| Number of subwoofers | 1 |
| Color | Black |
| Max. SPL (peak) | 120 dB |
| Frequency response | 50 - 20,000 Hz |
| Dispersion (H x V) | 120° x 20 ° |
| Overall height | 1985 mm |
Battery
| Rechargeable batteries | 29.6V / 5200 mAh |
| Battery manufacturer | LG Chem |
| Battery technology | Lithium-ion |
| Battery operation time at maximum load | 10 h @ 104 dB (Live music) , 20 hours @ 98 dB (Lounge) , 6 hours at 120 dB (DJ mode) |
| Charging time | 2 hours up to 80% , 3 hours up to 100% |
Woofer characteristics
| Low/mid driver dimensions | 8 " |
| Woofer size | 203.2 mm |
| Woofer magnet | Ferrite |
| Woofer brand | Custom-made |
| Woofer voice coil | 2 " |
| Woofer voice coil (mm) | 50.8 mm |
| Cabinet construction | Bass Reflex |
| Cabinet material | ABS plastic |
| Subwoofer width | 305 mm |
| Subwoofer height | 405 mm |
| Subwoofer depth | 395 mm |
| Subwoofer weight | 8.9 kg |
Mid/Hi System
| Midrange size | 4 x 3 " |
| Midrange size | 4 x 76.2 mm |
| Midrange magnet | Neodymium |
| Midrange brand | Custom-made |
| Midrange voice coil | 1 " |
| Midrange voice coil | 25.4 mm |
| Mid/Hi system impedance | 4 Ohm(s) |
| Loudspeaker inputs | 1 |
| Speaker input connections | Custom-made multipin |
| Cabinet construction mid/high | Closed |
| Mid/Hi system cabinet material | ABS plastic |
| Mid/Hi system width | 82 mm |
| Mid/Hi system height | 535 mm |
| Mid/Hi system depth | 105 mm |
| Mid/Hi system weight | 3.8 (3ps) kg |
Amplifier module (integrated in subwoofer)
| Amplifier | Class D |
| Amplifier output system (RMS) | 200 W |
| Amplifier output system (peak) | 800 W |
| Protection circuits | DSP-based multiband limiter , over-current , short circuit , thermal overload |
| Cooling | Convection |
| Operating Temperature | 0 - 50 °C |

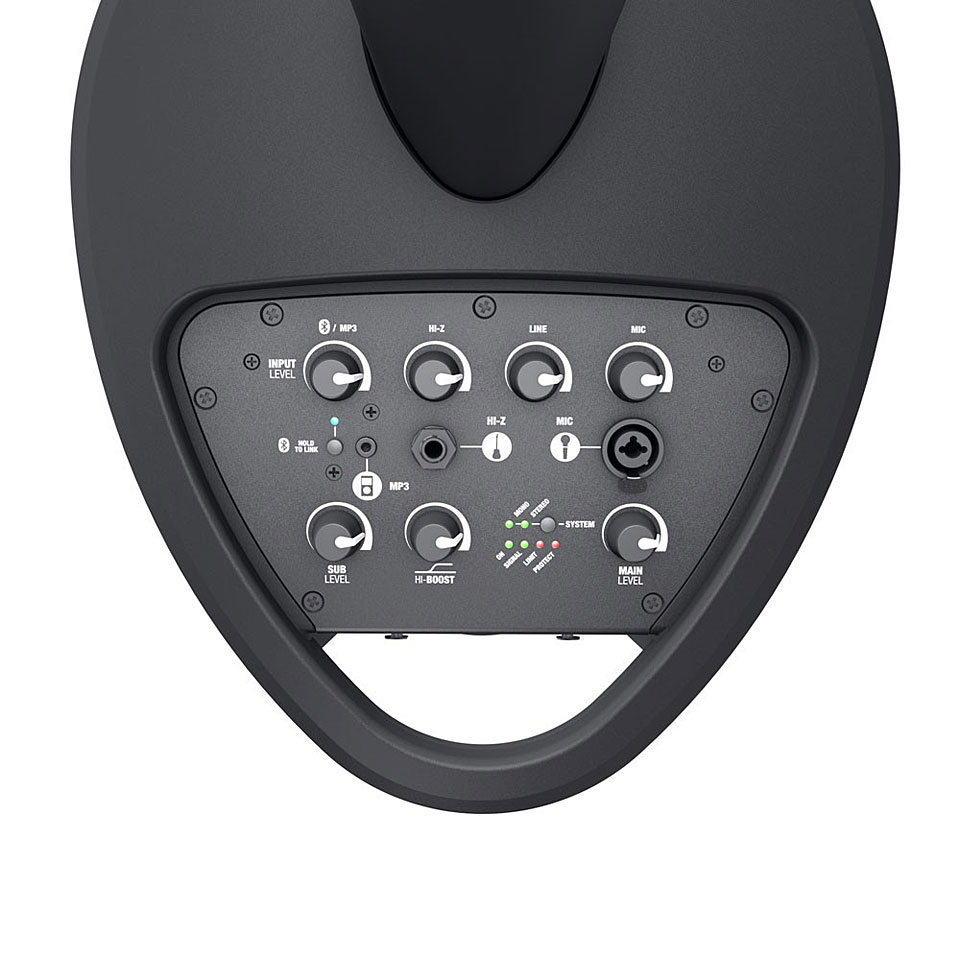

| Controls | BT level , BT pairing , Line level , Main level , Mic level , Mono/stereo mode , MP3 / Hi-Z level , On / Off , Sub level |
| Indicators | Limit , On , Protect (protection circuit engaged) , Signal |
| Operating voltage | Switching power supply |
| Operating voltage | 100 V AC - 120 V AC, 50 - 60 Hz , 200 V AC - 240 V AC, 50 - 60 Hz (Automatic conversion) |
| Power consumption | 300 W |
| Line inputs | 2 x stereo |
| Line input connectors | 6.3 mm jack , XLR |
| Mic inputs | 1 |
| Mic inputs | 6.3 mm jack , XLR |
| MP3 inputs | 1 |
| MP3 input connectors | 3.5 mm jack |
| Hi-Z inputs | 1 |
| Hi-Z input connectors | 6.3 mm jack |
| Loudspeaker outputs | 1 |
| Speaker output connections | Custom-made multipin |
DSP characteristics
| Bit depth AD/DA converter | 24 / 24 bit |
| Internal sampling frequency | 48 kHz |
