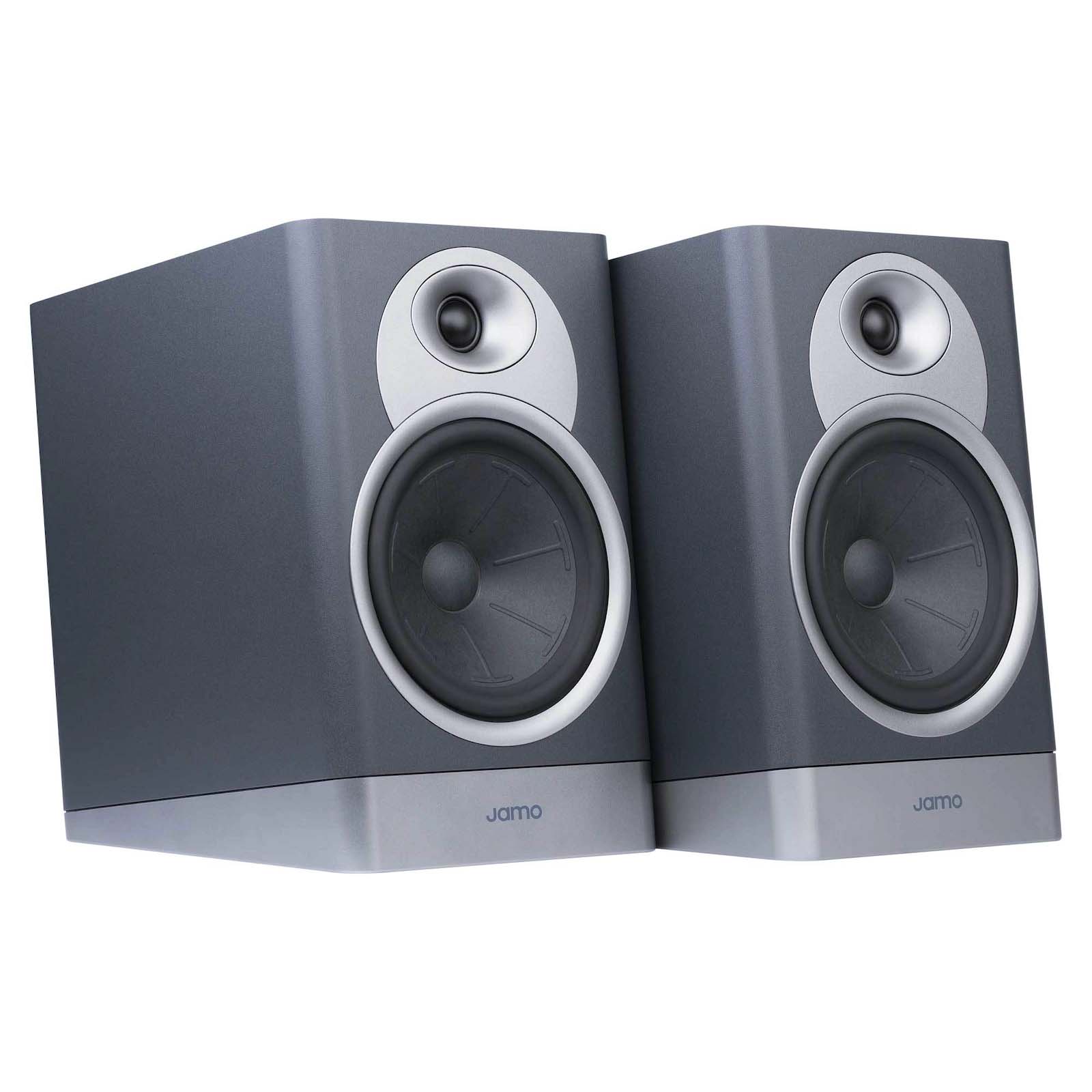

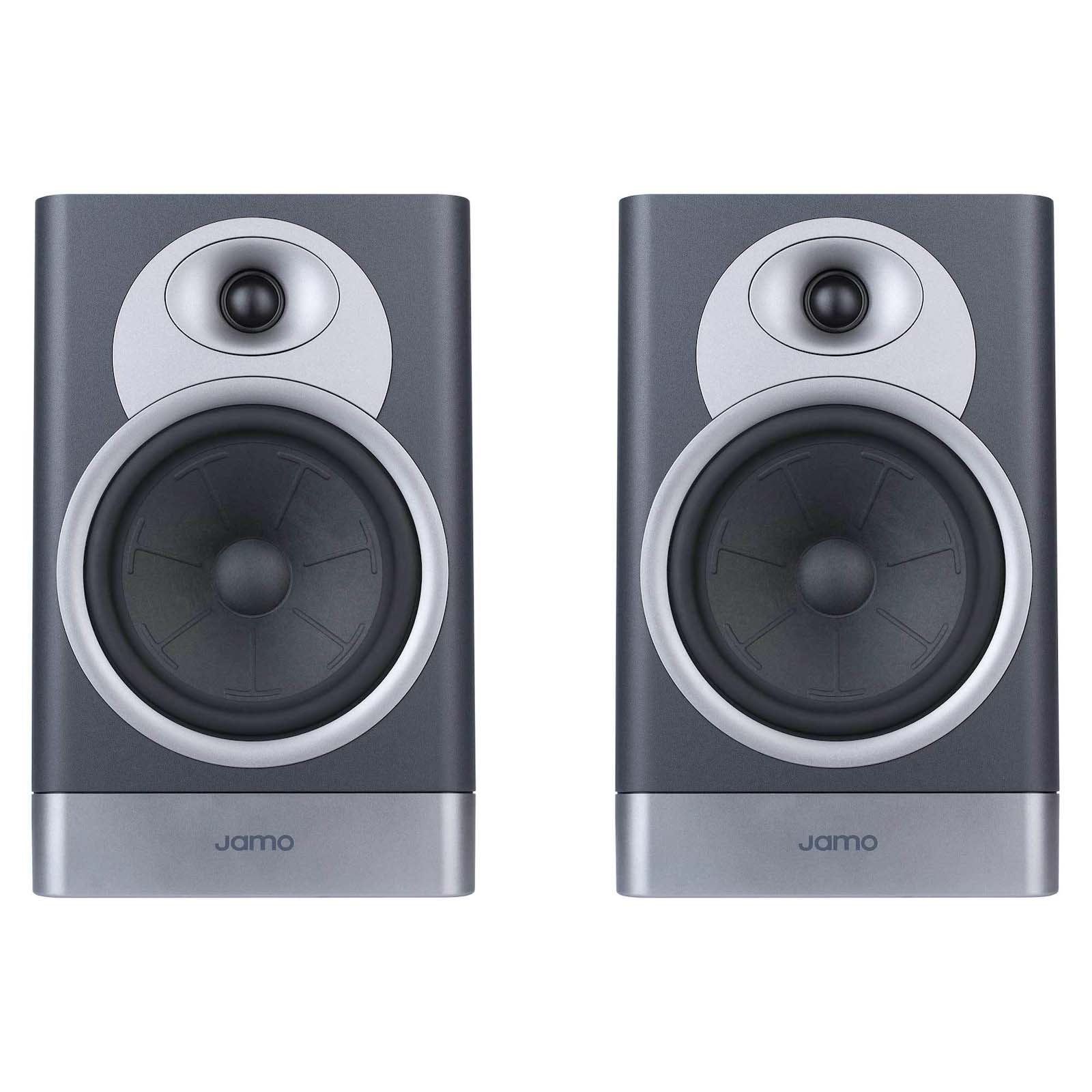

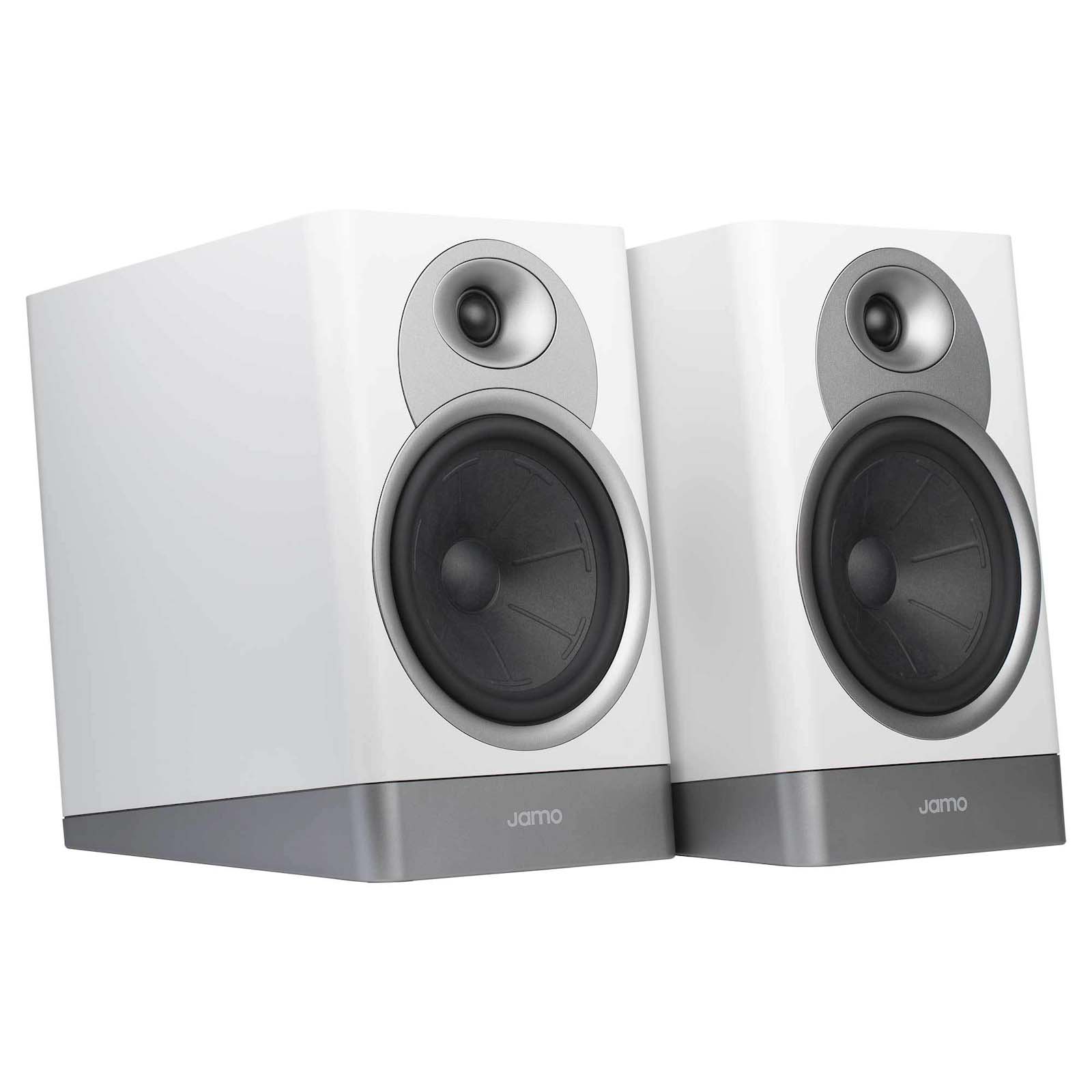

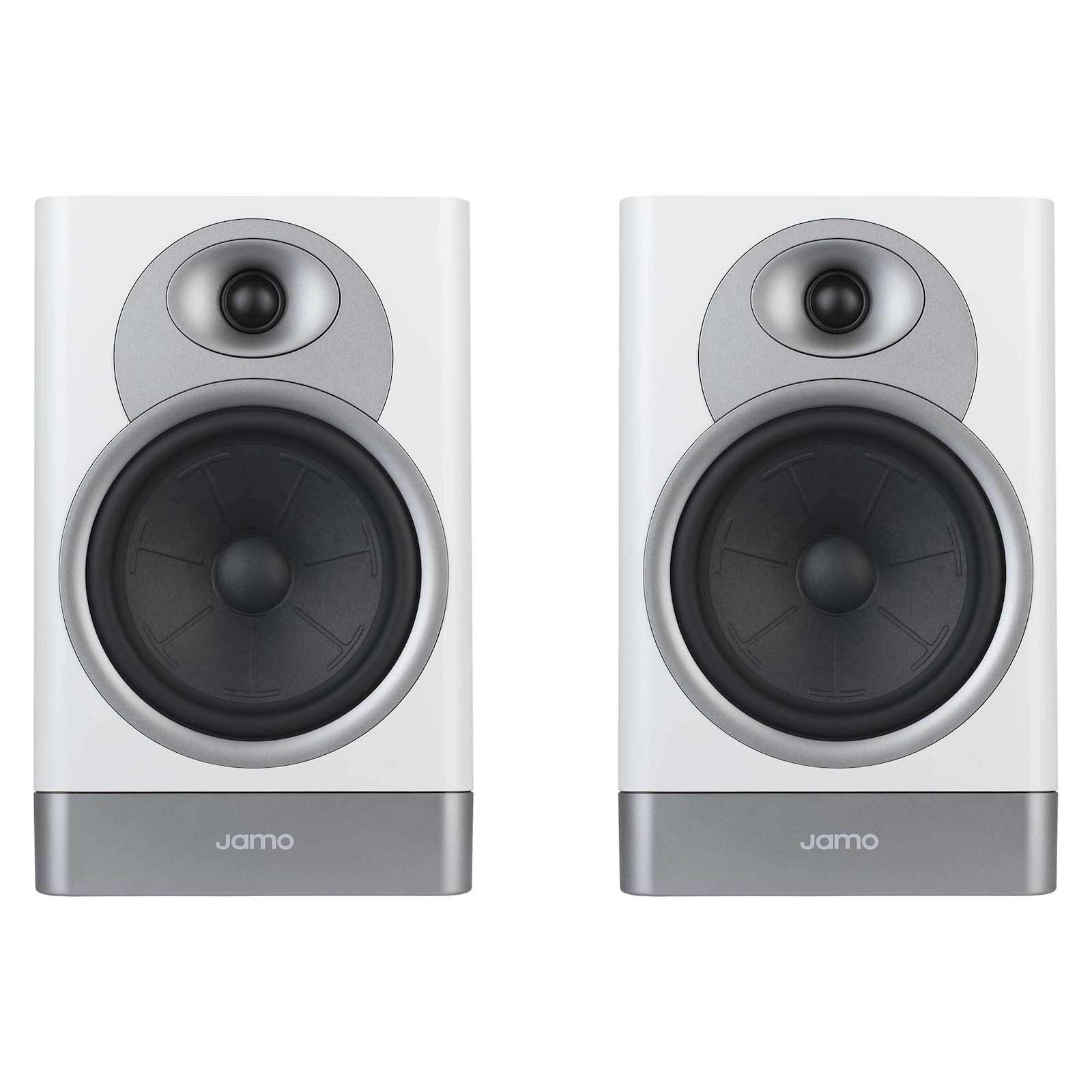

S7-17B BOOKSHELF SPEAKERS

A SOUND AS PURE AS SCANDINAVIAN AIR

When a speaker driver produces sound, energy spreads across the speaker's baffle towards the edge of the cabinet. Thanks to the rounded corners of the cabinet, the diffraction is reduced so the energy can dissipate gently and naturally without coloring the signal.

CRYSTAL-CLEAR HIGH FREQUENCIES

An all-new 1-inch tweeter featuring a copper faraday ring which increases sensitivity and reduces non-linear distortion carries out the high-frequency duties. The tweeter and surround are made from fabric and exhibit excellent distortion characteristics and wide bandwidth for a non-fatiguing yet detailed sound.

  • High-resolution two-way speakers

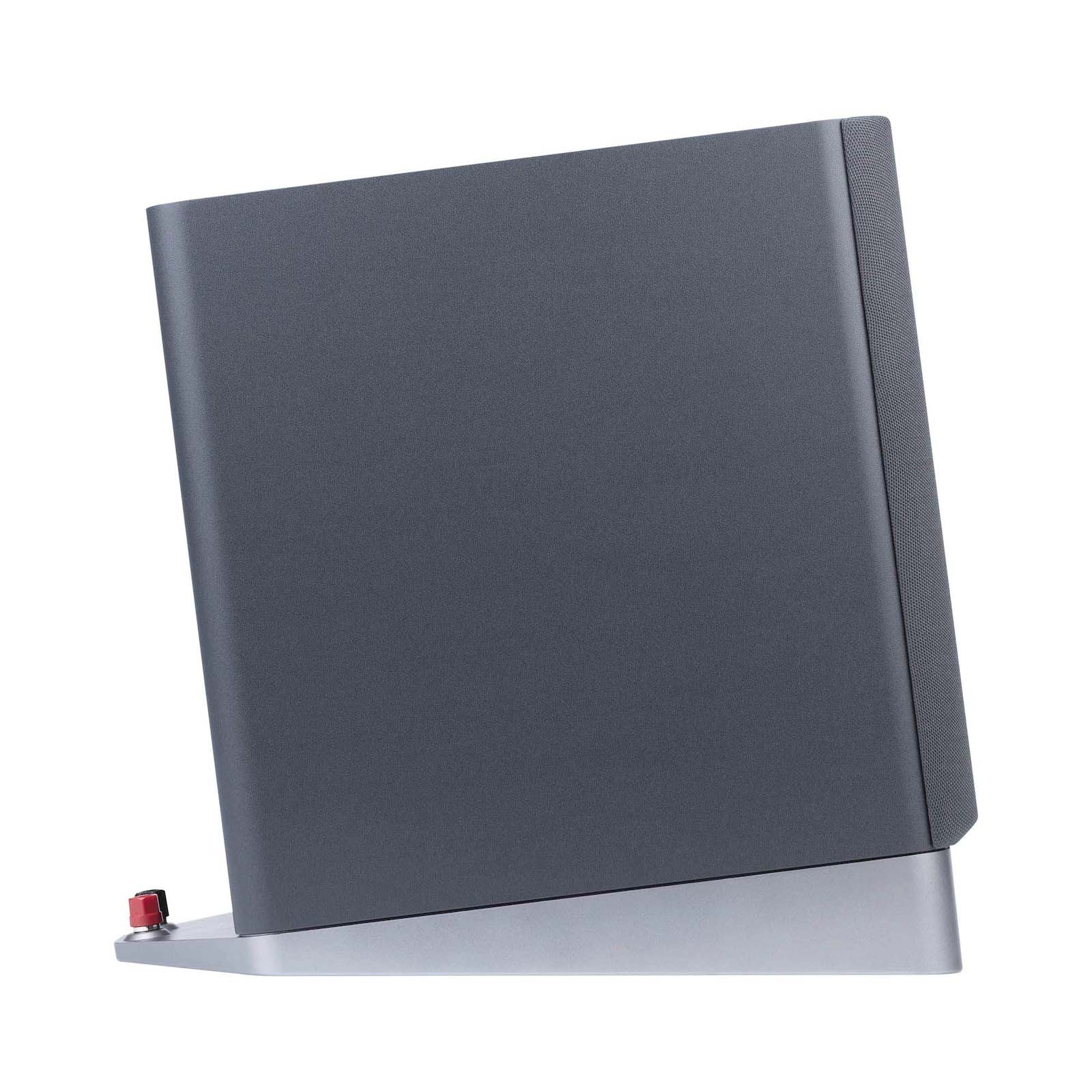

  • Seven-degree titled cabinets produce the most accurate soundstage
  • 6.69" woofer gives accurate bass that you can feel
  • Crisp high frequencies from the 25mm vented tweeter
  • Beautiful Scandinavian design

Audio

Frequency Response (±3 dB)64 Hz - 25 kHz
Frequency Range in Bass Section (-6 dB)51 Hz - 30 kHz
Crossover Frequency1.53 kHz
Maximum Output (peak sound pressure level at 1 m)104.2 dB

Power & Impedance

Impedance4 ohms

Connectivity

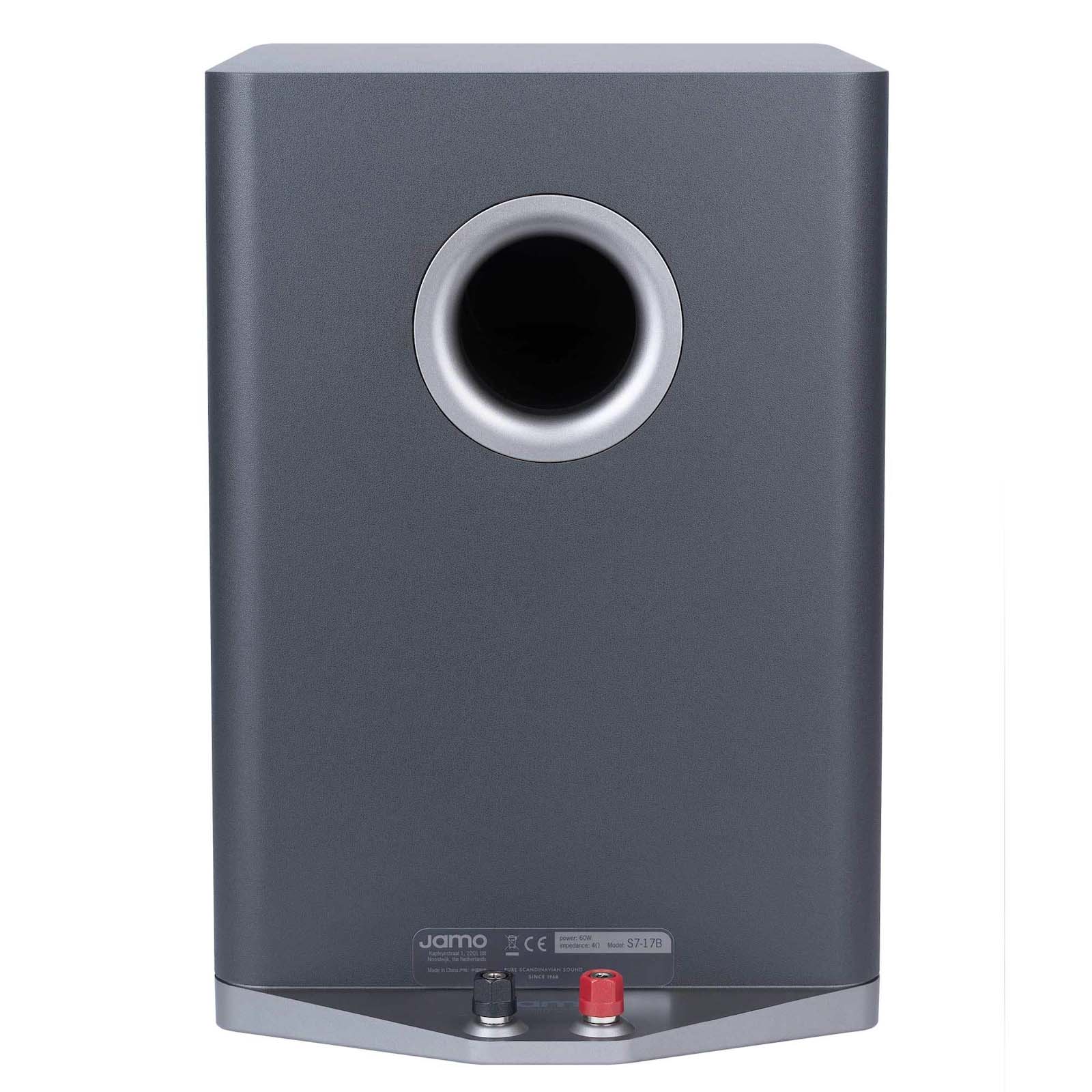

InputsSingle binding posts

Dimensions

Dimensions (unit) (H x W x D) (mm)365 x 230 x 380

Weight

Weight (unit) (kg)8.37

Design

ColourBlue Fjord
Design Type2-Way Bass Reflex
High Frequency Driver1"/2.54 cm Vented tweeter with a fabric dome
Low Frequency DriverSingle 6.69"/17 cm woofer - Embossed paper cone with Thor’s hammer
Enclosure MaterialMDF
Enclosure TypeBass Reflex
FinishVinyl
Product CodeJAMCGRFT19
ConditionNew
