LD ICOA 15A BT

Tap for gallery

$499.00


Product Information
Specification

ICOA 15 A BT

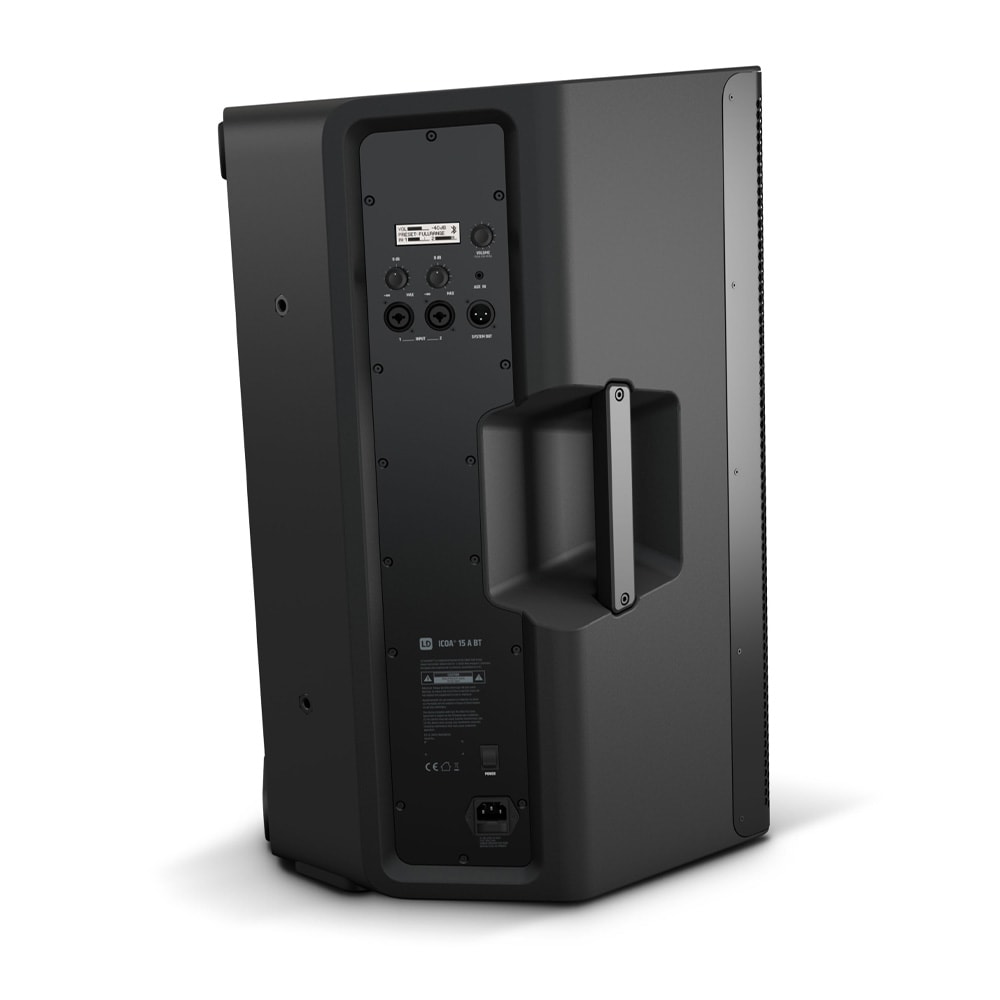

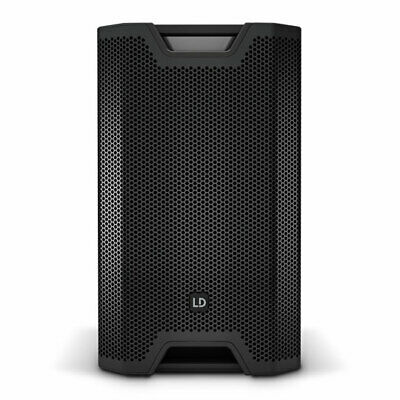

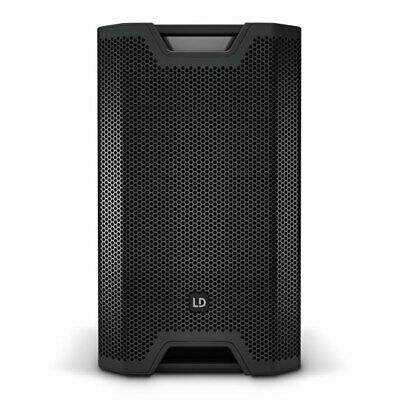

15“ Powered Coaxial PA Loudspeaker with Bluetooth

Specifications

Product typePA loudspeaker
TypePowered
Bluetooth Audio DecoderBluetooth 4.0
Low/mid driver dimensions15 "
Woofer size381 mm
Woofer magnetFerrite
Woofer brandCustom-made

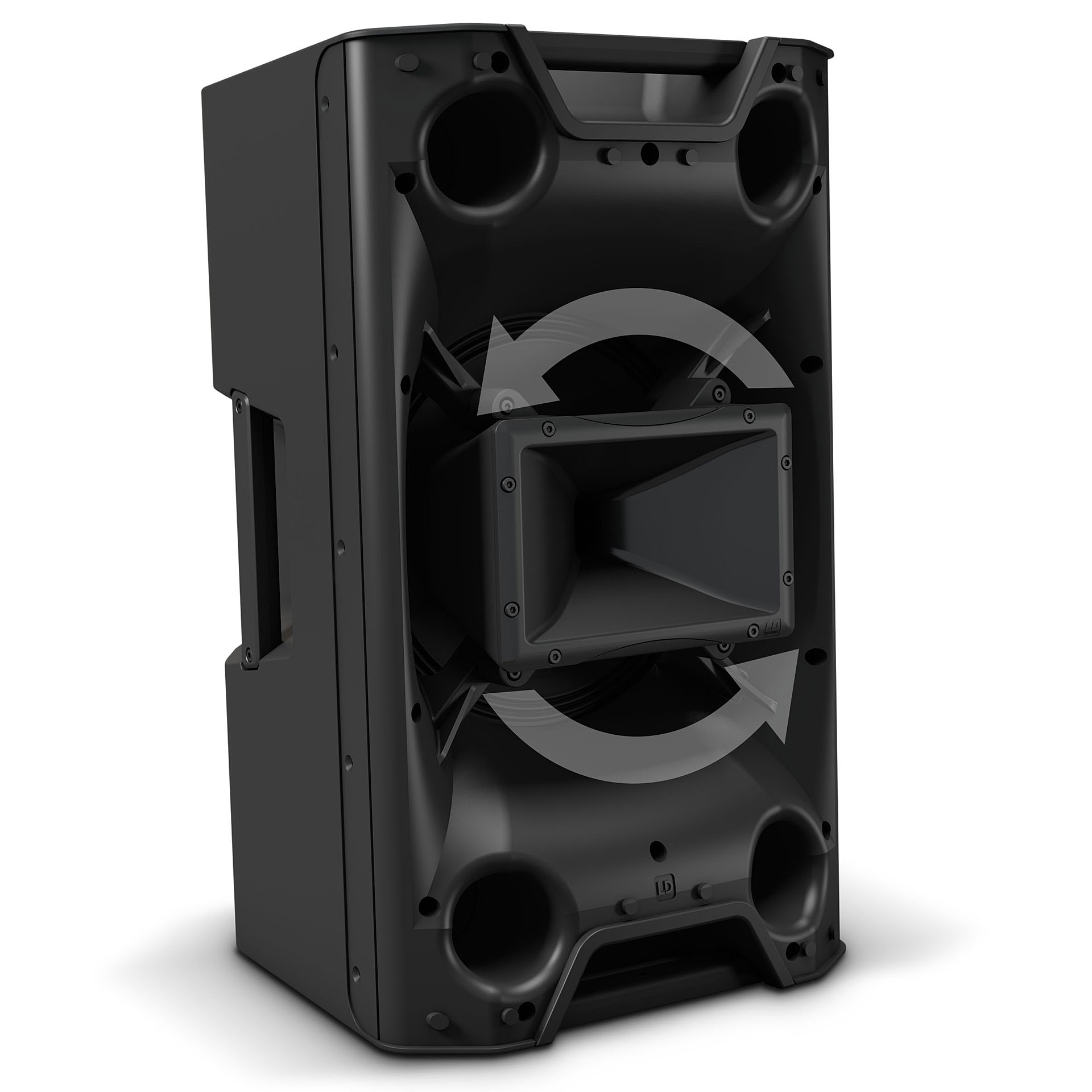

HornBEM optimized CD Horn
HF driver dimensions1 "
HF Driver Size25.4 mm
HF driver magnetFerrite
HF driver brandCustom-made
HF driver voice coil1 "
HF Driver Voice Coil25.4 mm
AmplifierClass D
Dispersion (H x V)90 ° x 50 °
RMS300 W
Peak power1200 W
Frequency response48 - 20000 Hz
Crossover frequency kHz2 kHz
Max. SPL (peak)128 dB
Protection circuitsMultiband limiter , over voltage , over-current , thermal overload
Controls2 x gain , On / off switch , Rotary/push encoder
IndicatorsLC display
Mic/ line inputs2
Mic-/ Line Input Connectors6.3 mm jack Combination sockets (symmetrical) , XLR
Line inputs1
Line input connectors3.5 mm TRS
Line outputs1
Line output connectorsXLR
Operating voltageSMPS
Power consumption150 W
Ambient temperature ( in operation )0 - 40 °C
Operating voltage100 V - 240 V AC / 50 - 60 Hz
Relative Humidity< 80 %, not condensing
FuseT4AL 250 V
Cabinet materialPolypropylene
Cabinet constructionBass Reflex

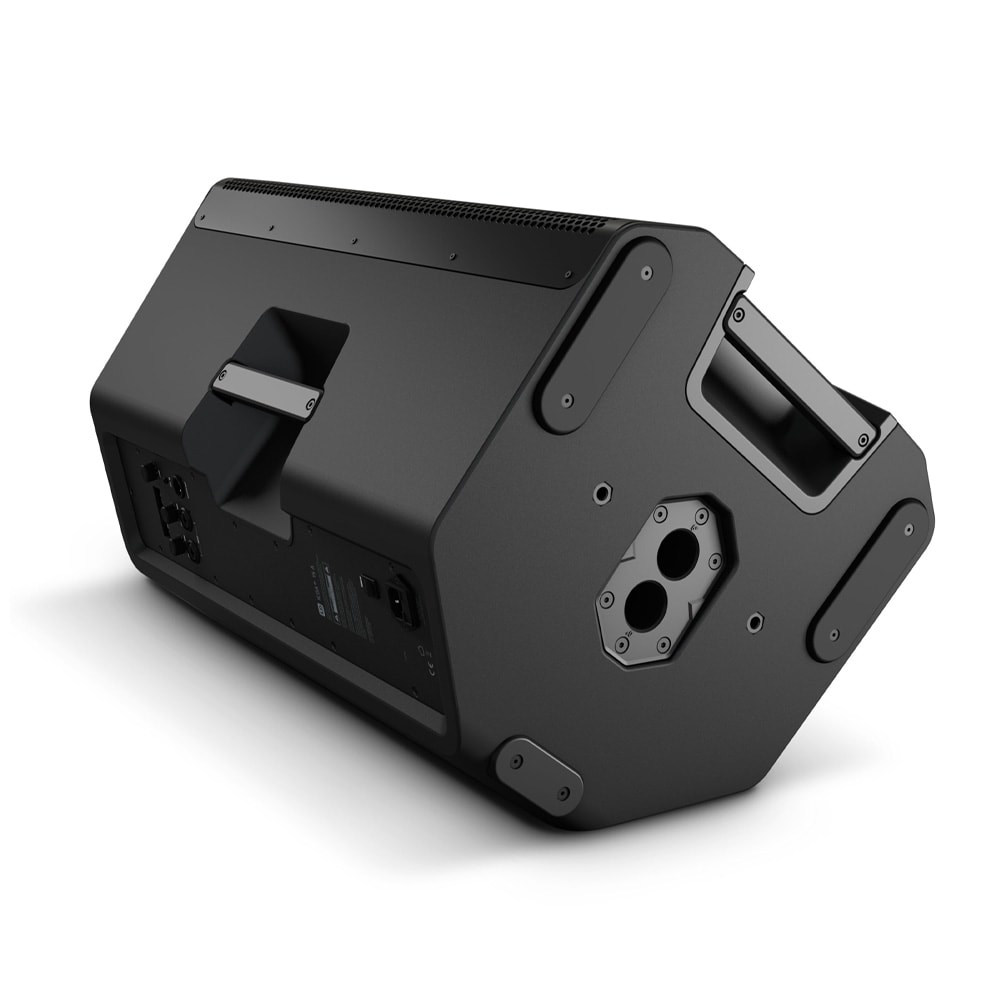

Mounting36mm flange (0°, 5°) , 6 x M10 flying points
Monitor angle55 °
Width416 mm
Height695 mm
Depth415 mm
FeaturesBluetooth
Weight24,3 kg
Accessories (included)Power cord
Product CodeLD CZ4OI8
ConditionNew
