Product Information




Product typePA Complete Systems

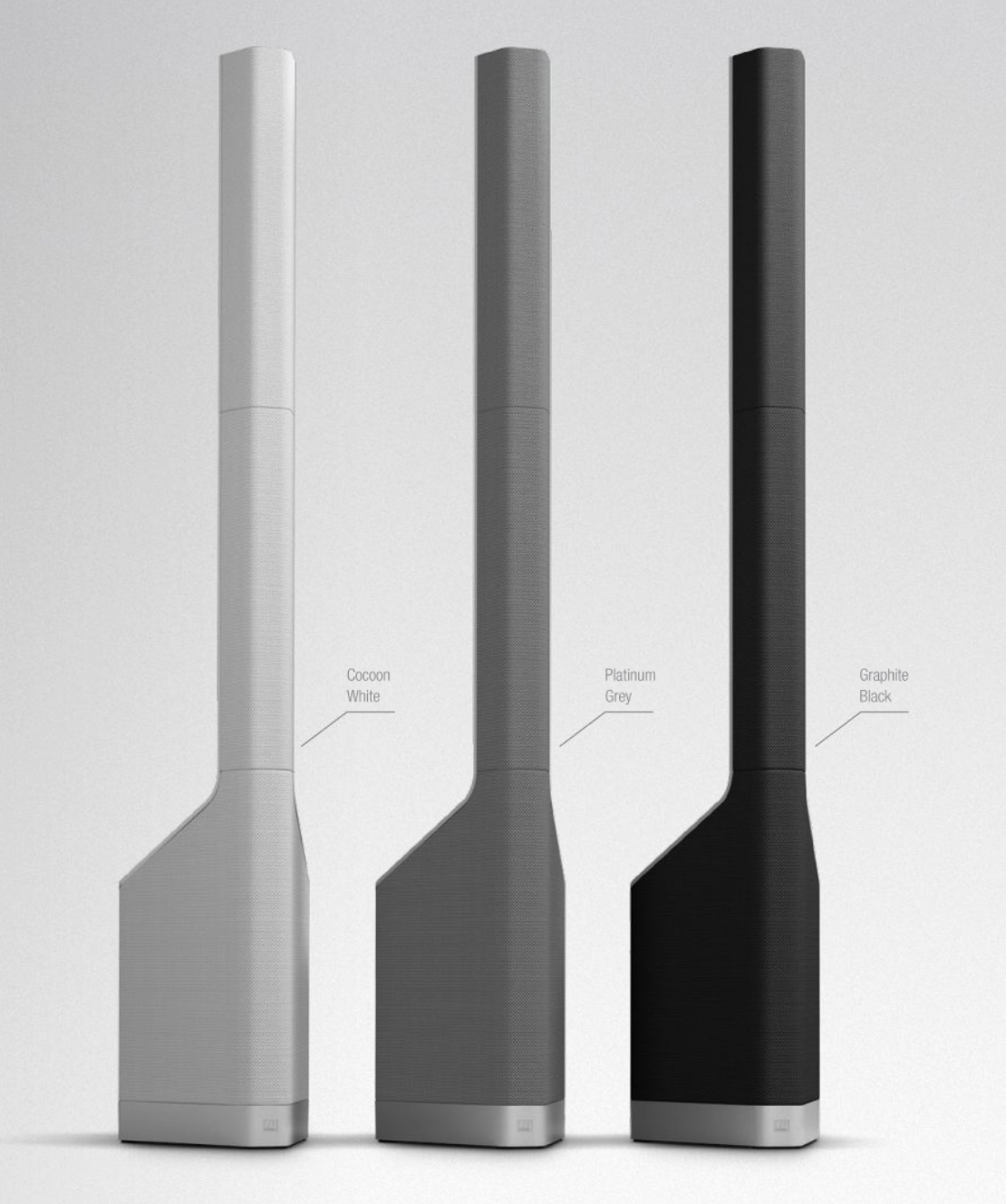

ColorGraphite Black
Max. SPL (continuous)121 dB
Max. SPL (peak)131 dB
Frequency response42 - 20.000 Hz
Dispersion (H x V)140 x 15 °
Total Height2173 mm
Weight46 kg

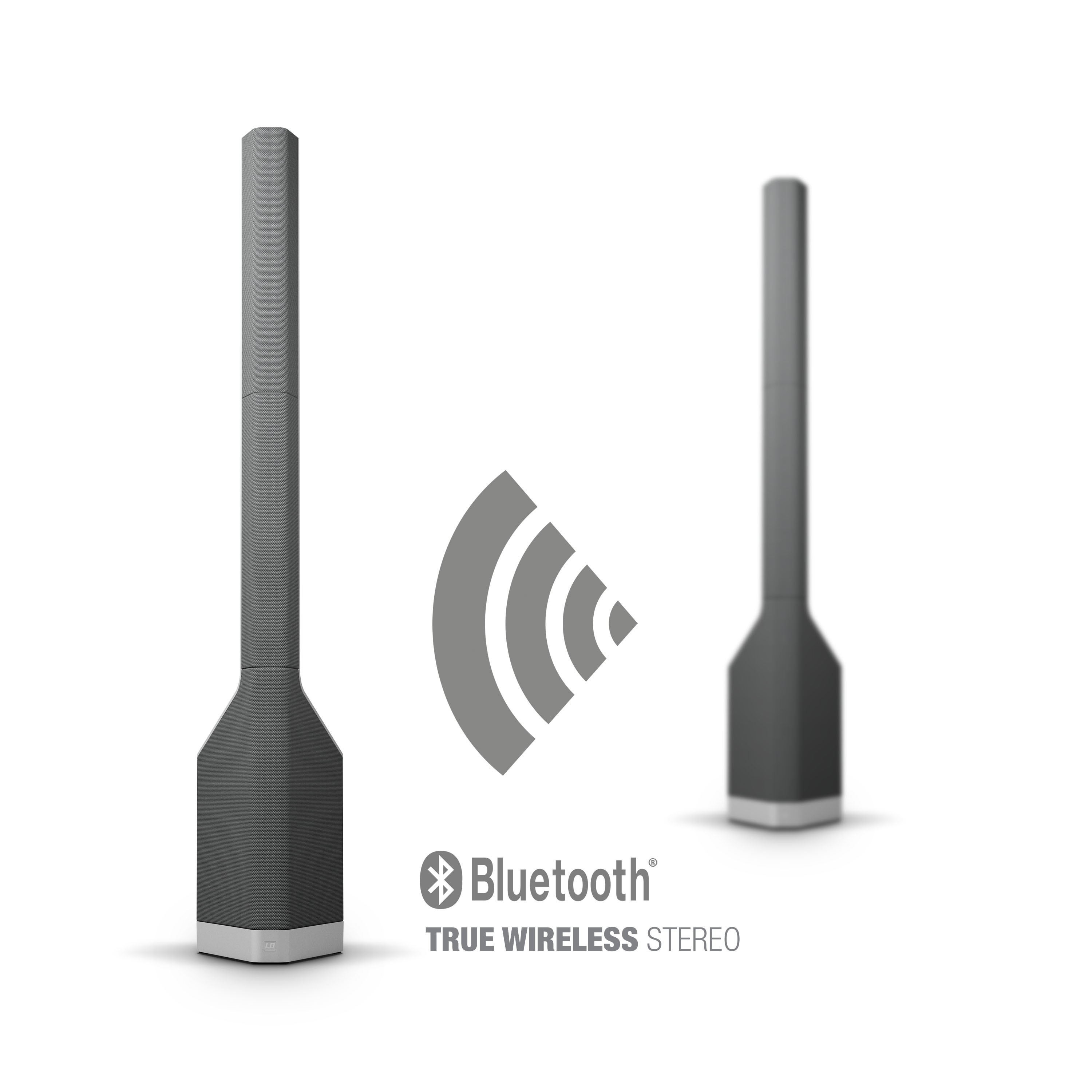

FeaturesBluetooth Audio Streaming , DSP-based Signal Processing , Excellent Sound Dispersion , Mono/ Stereo Application

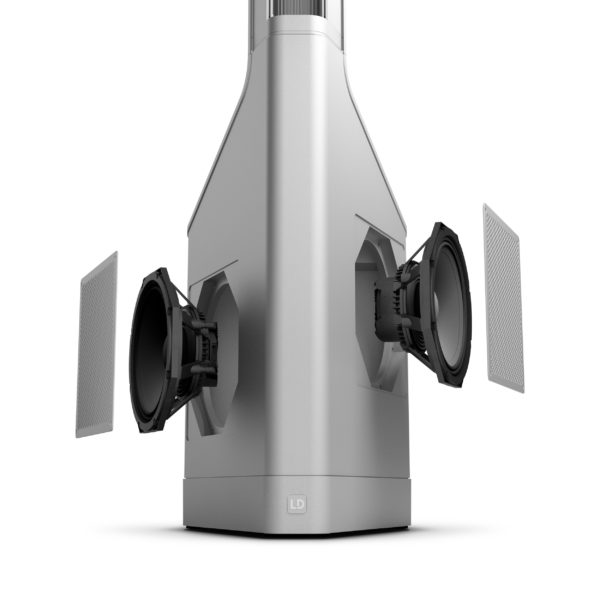

Woofer dimensions2 x 10 "
Woofer size2 x 254 mm
Woofer magnetNeodymium
Woofer brandCustom-made
Woofer voice coil3 "
Woofer voice coil (mm)76.2 mm
Cabinet constructionBass Reflex
Housing material15 mm Plywood
Cabinet surfaceHD coated aluminum , multi layer mesh (cloth)
Dimensions Subwoofer (W x H x D)400 x 745 x 470 mm
Subwoofer weight30.6 kg

Mid/Hi System

Midrange size16 x 2.8 "
Midrange size16 x 71,1 mm
Midrange magnetNeodymium
Midrange brandCustom-made
Midrange voice coil0.75 "
Midrange voice coil20 mm
Tweeter dimensions32 x 1 "
Tweeter dimensions (mm)25.4 mm
Tweeter magnetNeodymium
Tweeter brandCustom-made
Tweeter voice coil1 "
Tweeter voice coil (mm)25.4 mm
Wave GuideSonicGuide® Technology
MF / HF Transducer ArrangementPatented WaveAhead® Technology
Loudspeaker inputs1

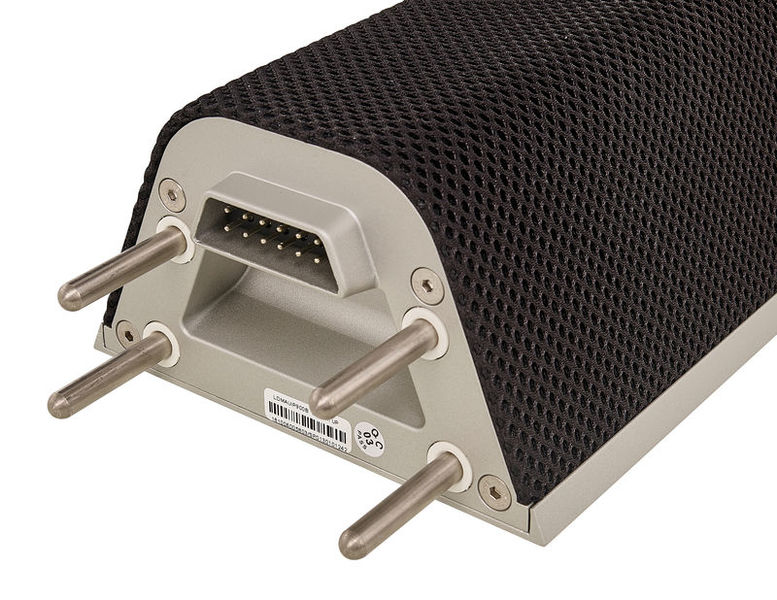

Speaker input connectionsCustom-made multipin
Cabinet construction mid/highClosed
Mid/Hi system cabinet materialAluminum
Mid/Hi system cabinet surfaceHD coated aluminum , multi layer mesh (cloth)
Mid/Hi system width157 mm
Mid/Hi system height1428 (2 x 714) mm
Mid/Hi system depth91 mm
Mid/Hi system weight2 x 7.7 kg

Amplifier module (integrated in subwoofer)

Amplifier3 x class D
System output (RMS):1400 W
System output (Peak)2800 W
Protection circuitsDC protection , Multiband limiter , short circuit , thermal protection

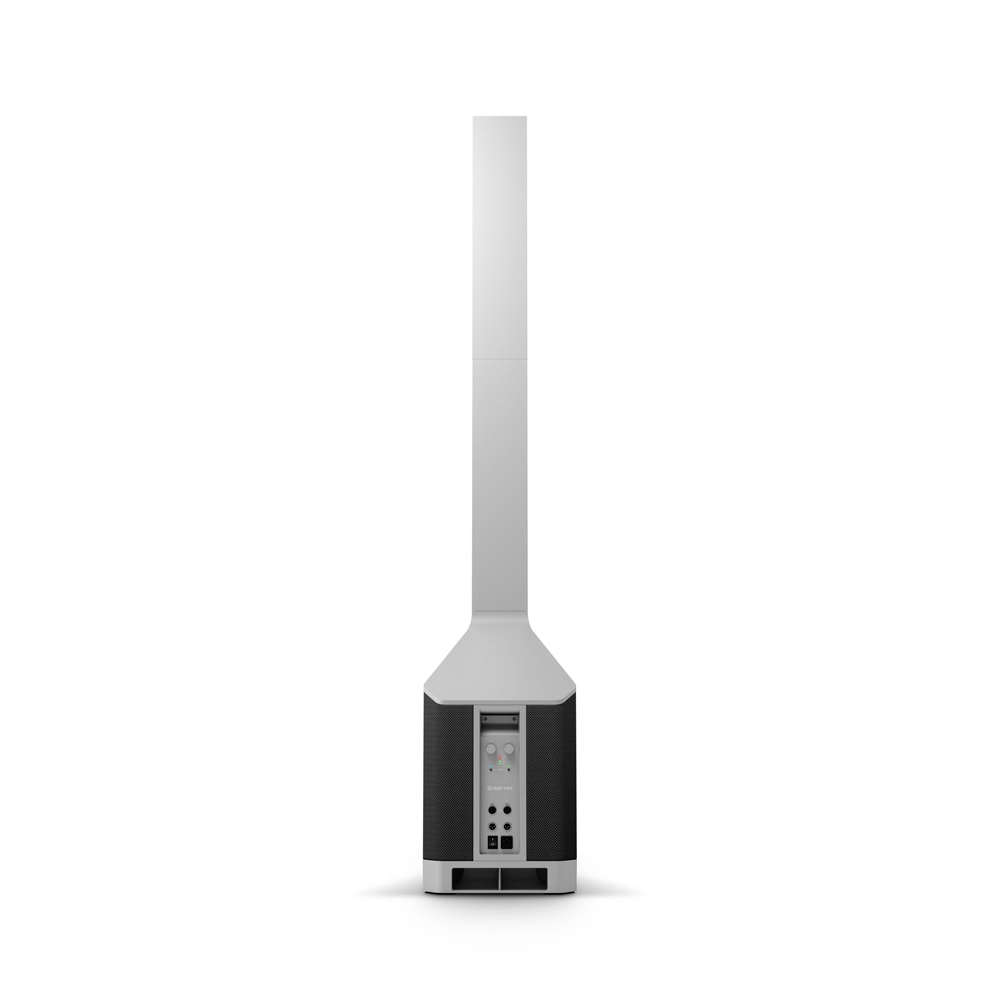

ControlsBluetooth HOLD TO LINK button , Bluetooth STEREO LINK button , Main level , Power On/Off , Sub level
IndicatorsBluetooth , Bluetooth STEREO LINK , Limit , Power , Protect (protection circuit engaged) , Signal
Mains connectorIEC power cable (included)
Operating voltage100 V AC - 120 V AC, 50 - 60 Hz , 200 V AC - 240 V AC, 50 - 60 Hz (Automatic conversion) , Switching power supply
Power Consumption (On / Off / Max.)0 W / 11 W / 1000 W
Ambient temperature (operating)0 - 40 °C
Relative Humidity10 % - 80 %
Line Inputs1 x stereo
Line Input ConnectorsNeutrik XLR
Line Outputs1 x Stereo Thru
Line Output ConnectorsNeutrik XLR
Number of speaker outputs1
Loudspeaker Output ConnectorsCustom-made multipin
Bluetooth StandardA2DP
Bluetooth Audio DecoderAAC , aptX , SBC

DSP characteristics

Bit depth AD/DA converter24 bit
Sampling frequency48 kHz
Signal-to-noise ratio106 dB
Product CodeLD TV5QA54
