Bowers & Wilkins 802 D4

Tap for gallery

$38,990.00


Product Information
Specification

BOWERS & WILKINS B&W 802 D4

Aluminium top-plate
Every stereo model in the new range has a significantly upgraded cabinet design with an all new aluminum top plate for even greater stiffness and as a result, even more realism.
The same design provides a perfect mounting point for all-new Leather by Connolly cabinet detailing


Decoupled midrange
The dedicated midrange cone uses four proprietary Bowers and Wilkins technologies: the Continuum cone, FST, Biometric Suspension and midrange decoupling, the latter ensuring minimal interference from the loudspeaker’s bass drivers


Technical features
Diamond tweeter
Solid body Tweeter-on-Top
Continuum cone FST™
Anti-Resonance plug
Biomimetic Suspension
Turbine Head
Matrix™
Aerofoil cone bass units
Flowport™

Description
3-way vented-box system

Drive units
1x ø25mm (1in) diamond dome high-frequency
1x ø150mm (6in) Continuum cone FST™ midrange
2x ø200mm (8in) Aerofoil cone bass units

Frequency range
14Hz to 35kHz

Frequency response
(+/-3dB from reference axis)
17Hz to 28kHz

Sensitivity
(on axis at 2.83Vrms at 1m)
90dB

Harmonic distortion 2nd and 3rd harmonics (90dB, 1m on axis)
<1 % 70Hz – 20kHz
<0.3% 100Hz – 20kHz

Nominal impedance
8Ω (minimum 3.0Ω)

Recommended amplifier power
50W – 500W into 8Ω on unclipped programme

Max. recommended cable impedance
0.1Ω

Dimensions Height: 1218mm
Width: 413mm
Depth: 602mm
Net weight 88.10kg

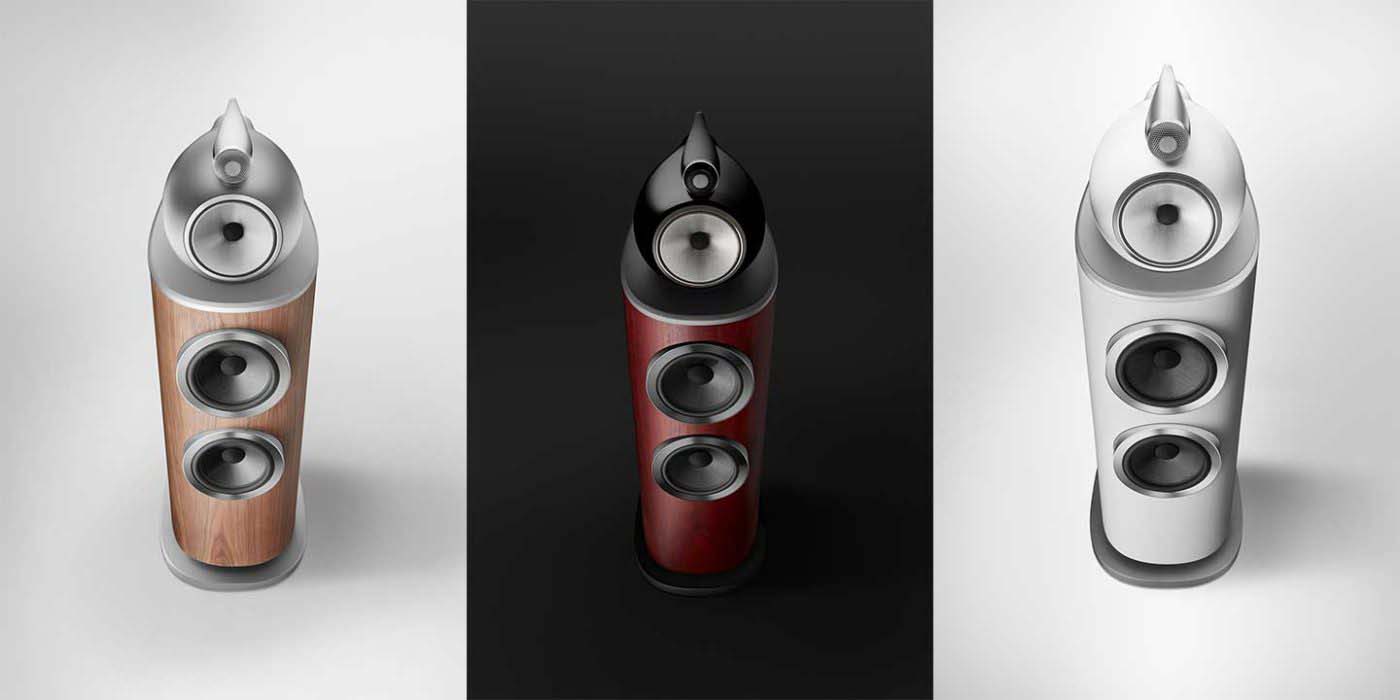

Finishes Cabinet:
Gloss Black
Satin Rosenut
Satin Walnut
White

Product CodeBOW2GSKN18
ManufacturerBowers & Wilkins
ConditionNew
