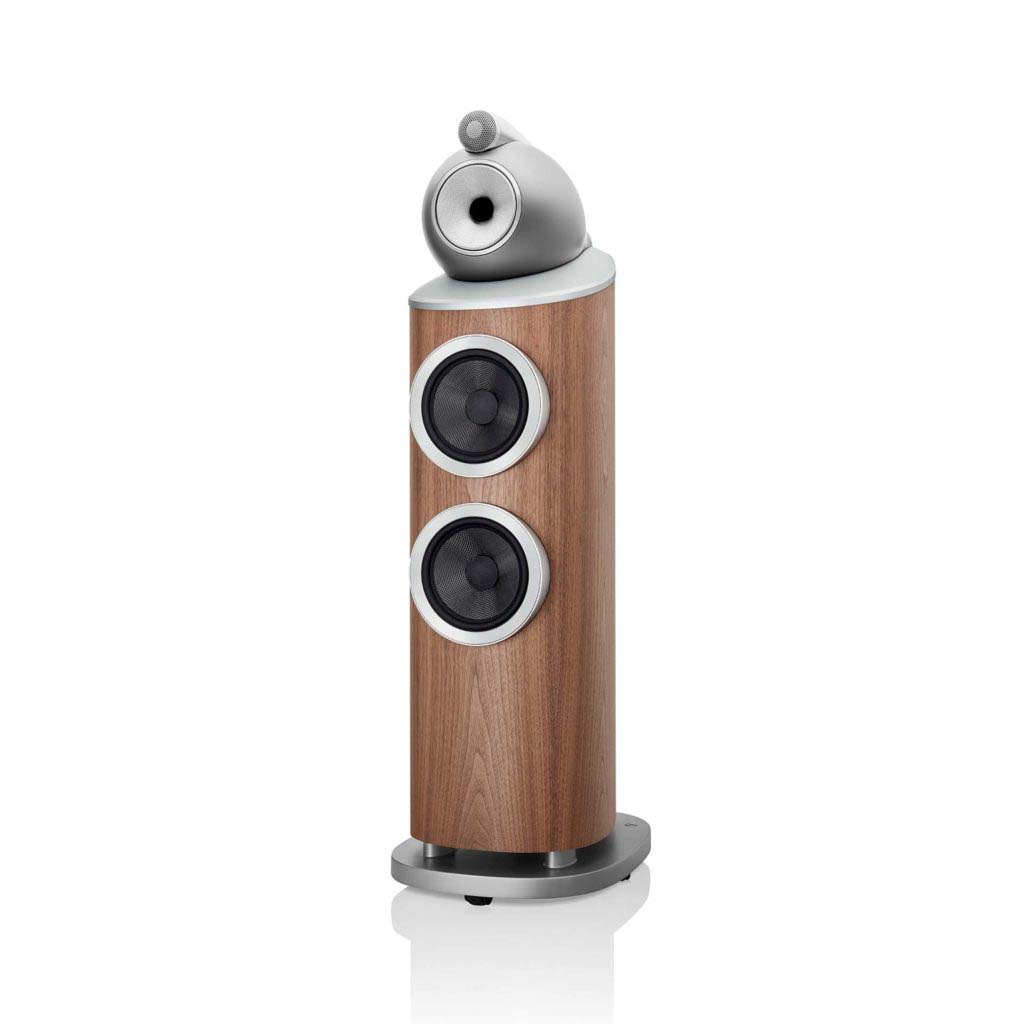

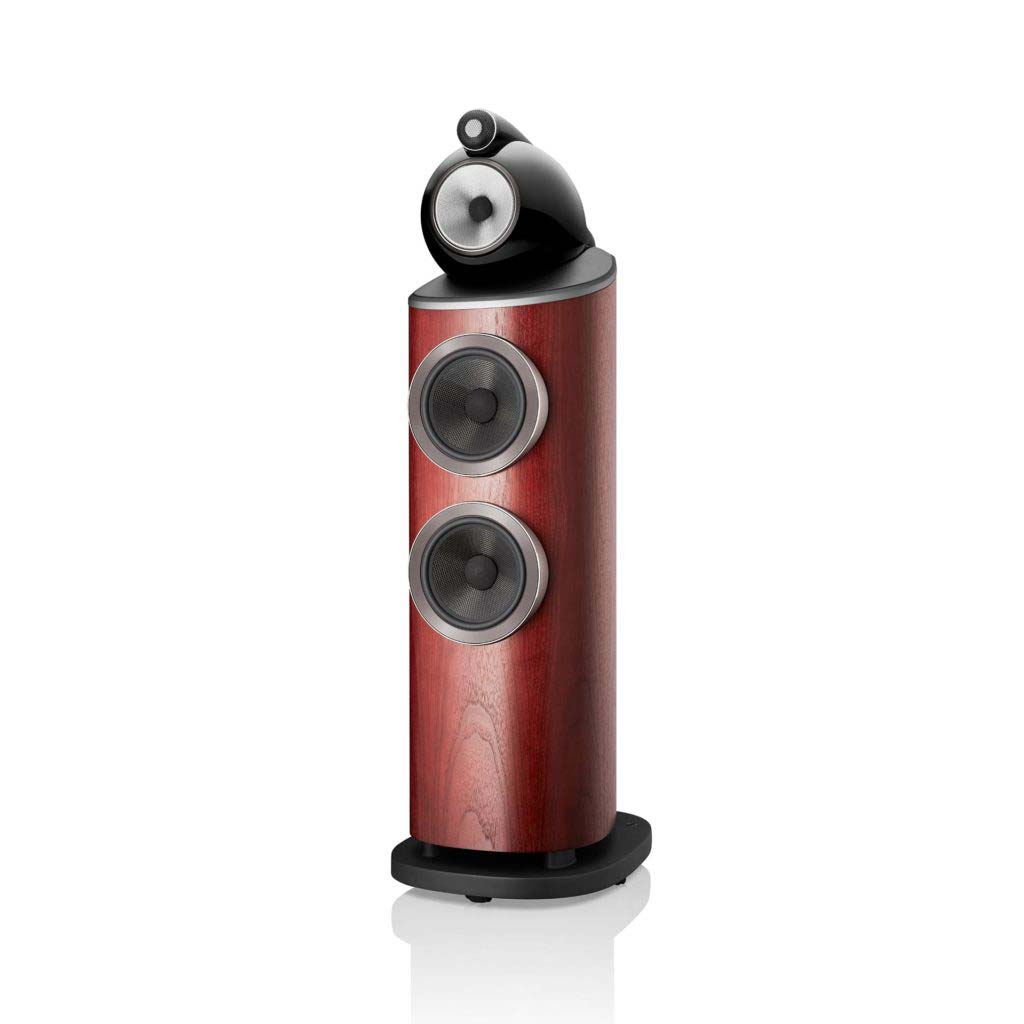

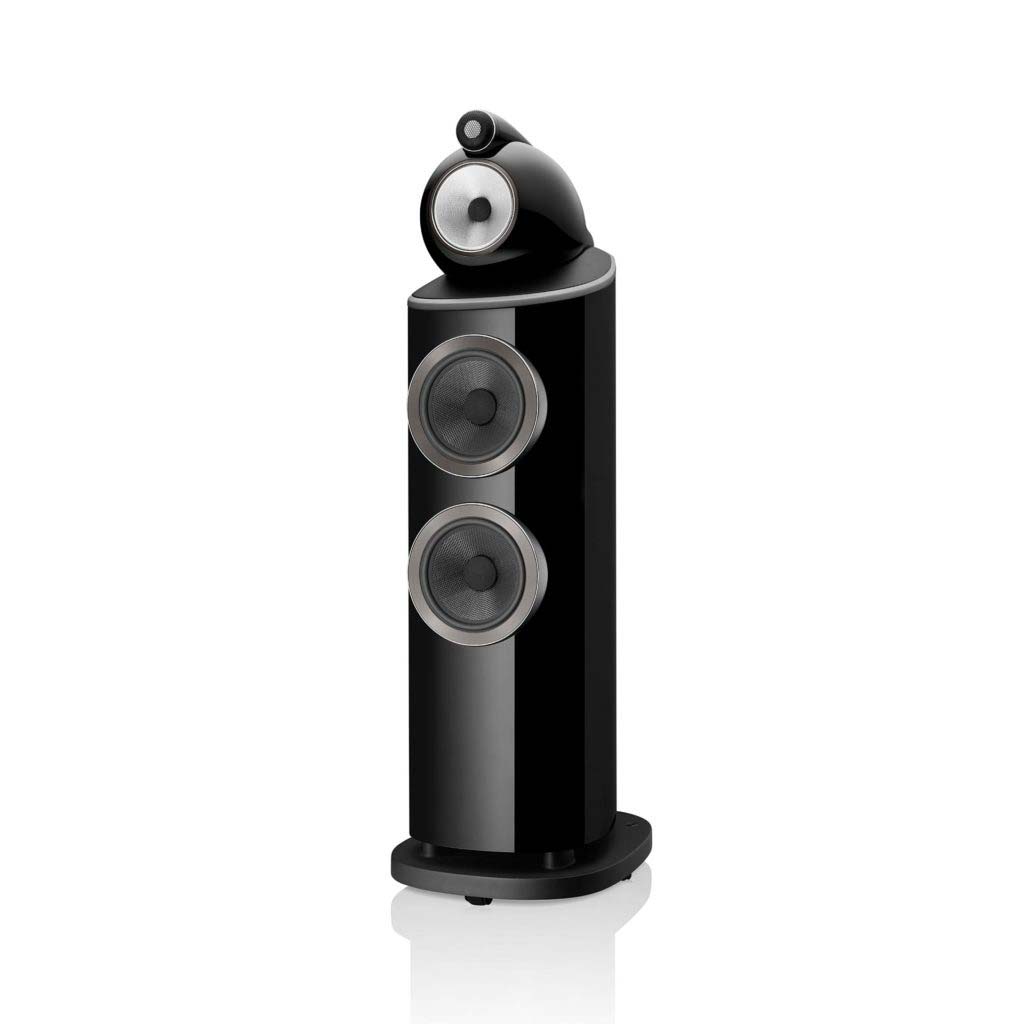

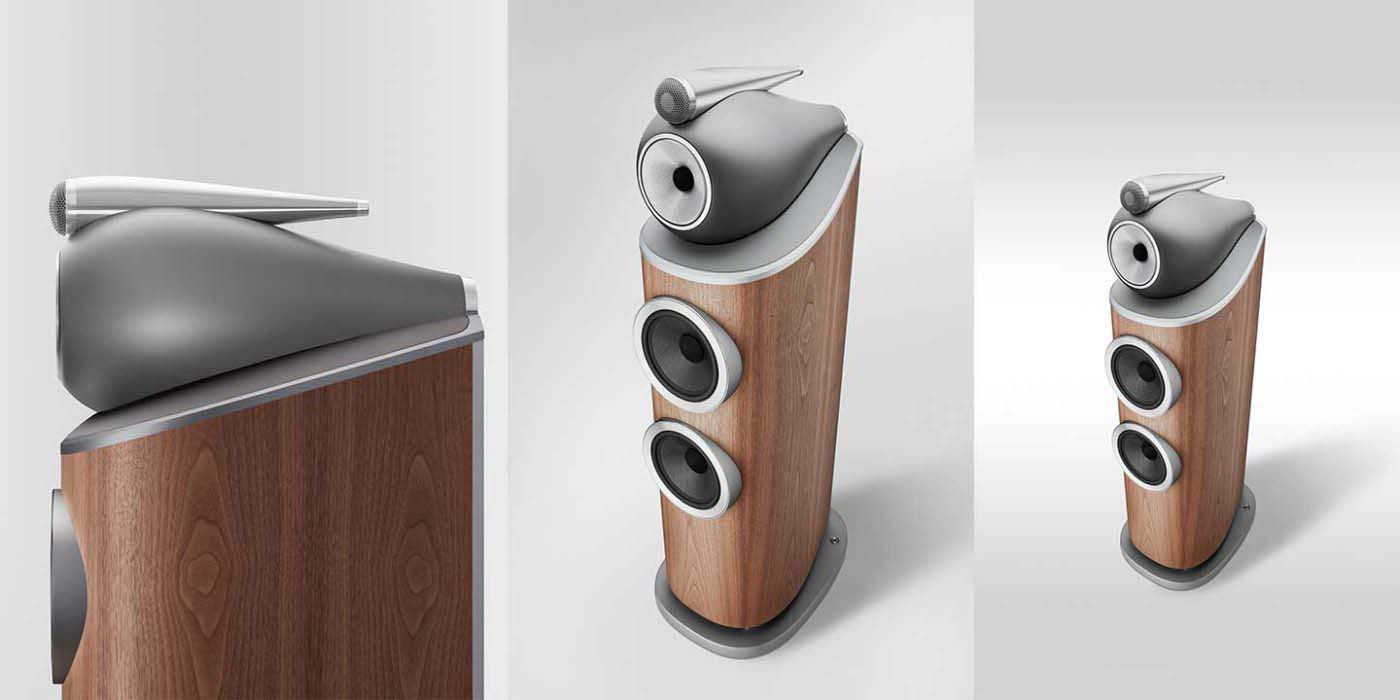

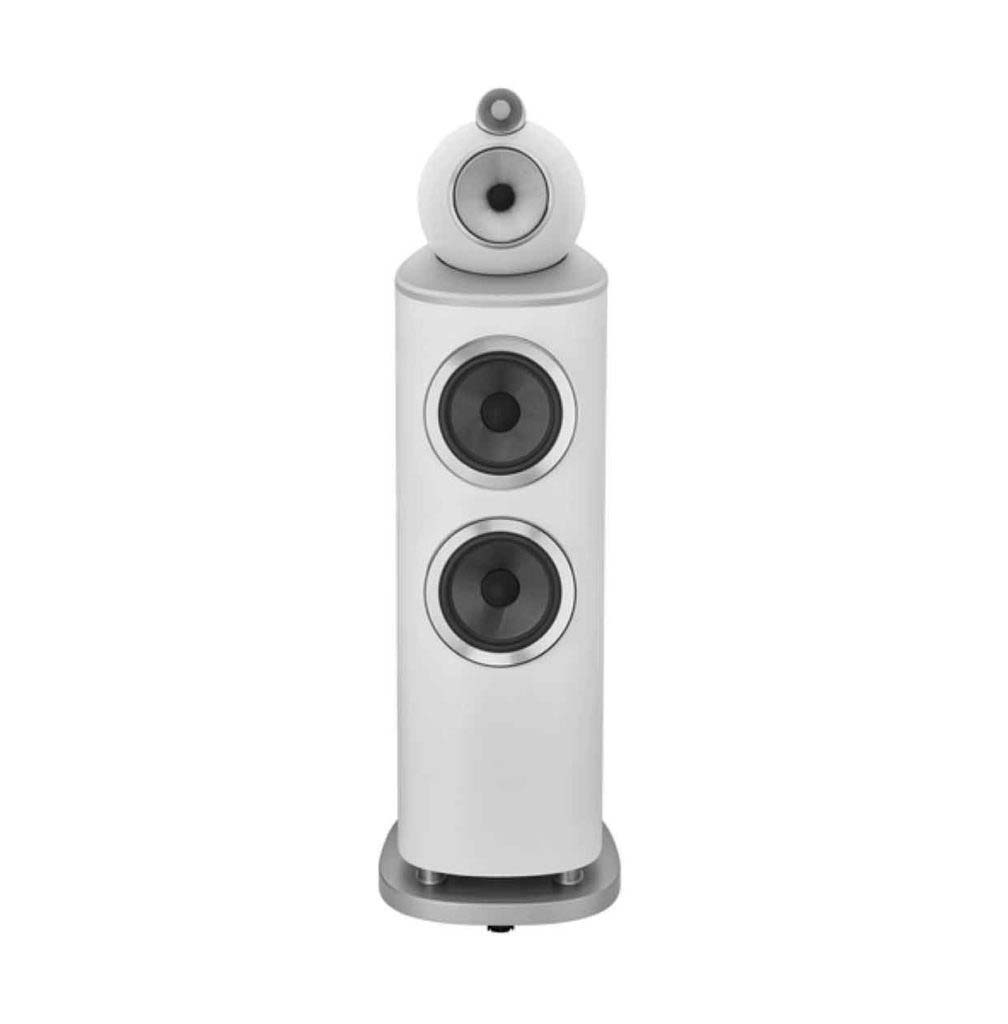

BOWERS & WILKINS 803 D4
Technical specifications
Technical features
Diamond tweeter
Solid body Tweeter-on-Top
Continuum™ cone FST
Anti-Resonance plug
Biomimetic Suspension
Turbine™ Head
Matrix™
Aerofoil™ cone bass units
Flowport
Description
3-way vented-box system
Drive units
1x ø25mm (1in) diamond dome high-frequency
1x ø130mm (5in) Continuum cone FST midrange
2x ø180mm (7in) Aerofoil cone bass units
Frequency range
16Hz to 35kHz
Frequency response
19Hz to 28kHz (+/-3dB from reference axis)
Sensitivity
90dB (on axis at 2.83Vrms at 1m)
Harmonic distortion
2nd and 3rd harmonics (90dB,1m on axis)
<1% 80Hz – 20kHz
<0.3% 100Hz – 20kHz
Nominal impedance
8Ω (minimum 3.0Ω)
Recommended amplifier power
50W – 500W into 8Ω on unclipped programme
Max. recommended cable impedance
0.1Ω
Dimensions
Height: 1165mm
Width: 357mm
Depth: 511mm
Net weight
62.15kg
